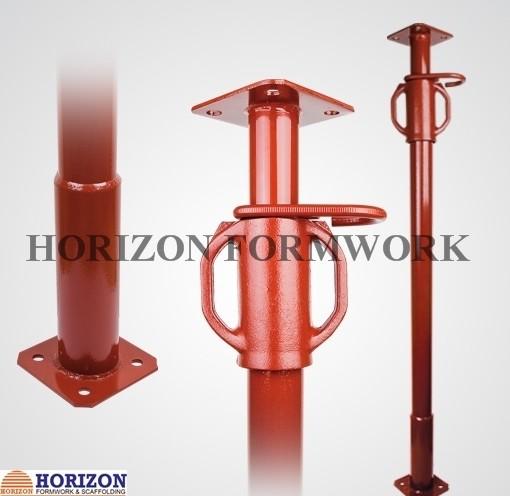

Scaffolding Prop Jack With Height Upto 5 Meter With Cast Iron Sleeve Nut

Adjustable scaffolding prop jacks are used for supporting work in buildings construction, with working height range from 1.7m up to 3,00-5,50 m.

Two end plates, upper and lower plates, serve to give stability to the steel prop.

The inner tube is Ø 48.3 mm (thickness from 2 mm to 4.0mm) with holes to adjust the working height with help of the pin.

The outer tube is Ø57 mm (thickness from 1.6 mm to 2.5mm) with reinforcement at foot.

The pin diameter is between 12 and 14 mm, with a special design that does not allow its fall.

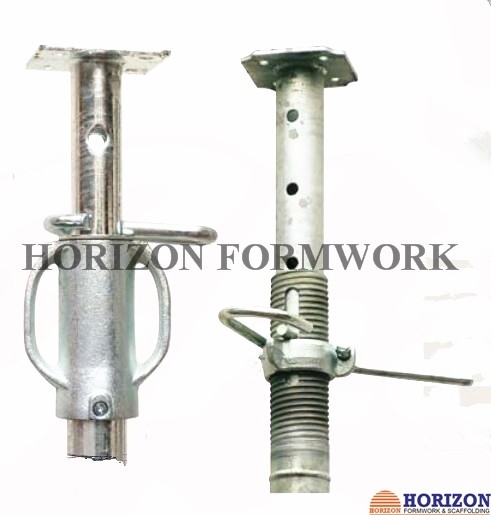

The thread is covered by a cup-type nut that has 2 side handles for easy handling.

A steel ring plate is also equipped on the nut that prevents concrete materials falling into the nut and get stuck.

The adjusting nut is made from cast iron, with high strength loading capacity.

       As a professional formwork company, HORIZON Formwork Co., Ltd. contributes its effort to the design, manufacturing and marketing of formwork systems, scaffolding systems and all kinds of accessories, which are widely used in commercial, residential and infrastructural projects. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
　　The main products we offer : wall formwork, slab table formwork, scaffolding system, timber beam H20, steel props, formwork wing nuts, tie rods, formwork clamps, and other formwork accessories, scaffolding fittings etc..

Over years of developement, we have completed many projects both in domestic market and abroad. Thanks to the reliable products quality and thoughtful service, HORIZON has won good reputation from the clients.

　　HORIZON Formwork, your reliable formwork partner!
