Auto Climbing Formwork System For High-rise Building and Bridge
Piers

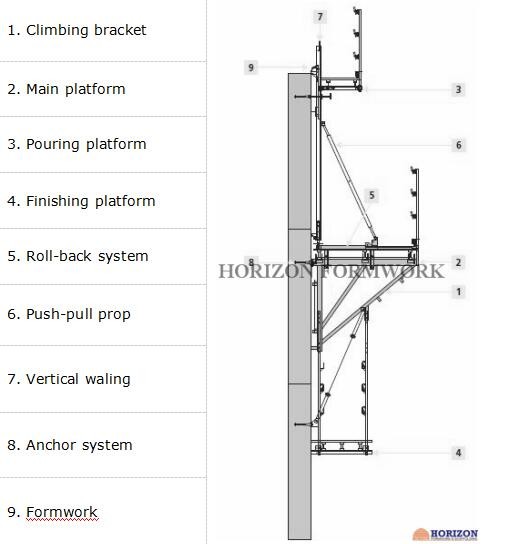

The climbing bracket is a modular system, which allows for a high
degree of adaptation to different building structures, which can be
used in different configurations.
Working platform
The climbing bracket CB240 can be used to build working platforms
with a width of 2.40 m.
In this configuration there is no formwork on the platform. Since
the platform is built with single brackets the range of application
is extremly flexible. It is easy to adapt the climbing system to
the requirements of the building geometry.
Compatible with wall formworks.
• The sets made up of brackets and formwork panels are moved to the
next pouring step.
• Adaptable to any structures, including straight, inclined and
circular walls.
• It is possible to build working platforms at different levels.
The access to the platforms is provided by safety ladders.
• All brackets include all the connectors to fix handrails,
push-pull props and other accessories.
• The climbing brackets allow rolling-back the formwork panels
using a system, formed by a carriage and a rack, incorporated in
these brackets.
• Formwork’s vertical adjusting and plumbing is completed with
leveling screw jacks and push-pull props.
• Brackets are anchored to the wall with anchor system.
Climbing sequence:
Step 1 The first pouring is to be completed by using the proper wall
elements and has to be exactly aligned with adjusting struts. | Step 2 The completely pre-assembled climbing scaffold units consisting of
climbing brackets with plank bottom and bracing have to be attached
to the bracket anchoring and secured. Then the formwork and the move-off carriage together with the
aligning beam has to be positioned on the brackets and fixed. |
Step 3 After shifting the climbing scaffold unit to the next pouring
position the finishing platform is to be mounted to the brackets to
complete the climbing system. | Step 4 Release and remove bolts that fixing the positioning anchor point. Loosen and remove tie-rod Loosen the wedges of the carriage unit. |
Step 5 Retract the carriage and lock it with wedge. Install upper climbing cones Loosen wind securing device, if any Remove the lower climbing cone | Step 6 Adjust the carriage into the common center of gravity and lock it
again. Attach the crane sling to the vertical waling. Remove the security bolts of the bracket. Lift the climbing bracket by crane and attach it to the next
prepared climbing cone. Insert and lock the security bolts again. Install the wind-load device, if required. |
Step 7 Move the carriage back and lock it by wedge. Clean the formwork. Install reinforcement bars. | Step 8 Move the formwork forward until lower end rests against top of the
finished section of the wall. Adjust formwork vertically by means of push-pull brace. Fix tie-rods for the wall formwork |
