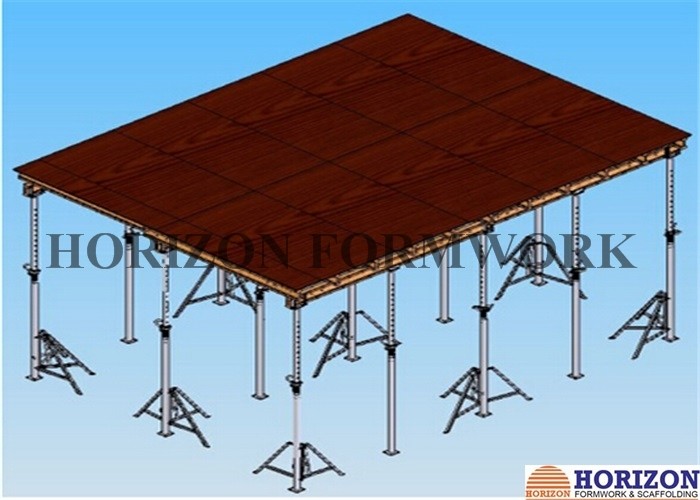

HORIZON’s slab table formwork system is typically used in concreting flat slabs for high-rise commercial towers, residential towers, etc. As the table form is assembled in one unit, it can be easily moved horizontally by trolley and vertically by lifting bracket, without being dismantled. In this way, the table form system provides a perfect solution with less cost and high efficiency when pour slab concrete on site.

Advantages:

• High load-bearing capacity of props are used in HORIZON table forms.
• Very easy installation to required dimensions and height level of the table, by adjusting props.
• It’s quite convenient to strip or relocate the tables by using trolley and lifting bracket.
• Large table size upto 15 m2 (3m x 5m) is easily transferred in one single crane lift.
• High safety measures are ensured by applying guard rails to edge tables.
• Guard rails are equipped to edge tables for safety protection.

• After edge tables erected, steel wire cables are used to fasten it to the embedded anchor bolts on the ground.

• Make sure low stacking height when transported and stored.

• Safe, fast shifting appliances, save time and cost.

• EN 1065 standard props are applied to tables, which ensures high-loading capacity of tables.

Table formwork components:

Components	Diagram / photo	Specification / description
Timber beam H20		Water proof treated Height: 200mm Width: 80mm Length: as per table size 4.8kg/m
Table head		Painted Length: 280mm Width: 235mm Height: 300mm 17kg
Floor Props		Galvanized As per proposal design HZP 20-300, 14kg HZP 20-350, 15.8kg HZP 30-300, 17.6kg HZP 30-350, 20.3kg
4-way head H20		Galvanized Length: 220mm Width: 145mm Height: 320mm 2.5kg
Folding tripod		Galvanized For holding floor props 8.5kg

       As a professional formwork company, HORIZON Formwork Co., Ltd. contributes its effort to the design, manufacturing and marketing of formwork systems, scaffolding systems and all kinds of accessories, which are widely used in commercial, residential and infrastructural projects. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
　　The main products we offer : wall formwork, slab table formwork, scaffolding system, timber beam H20, steel props, formwork wing nuts, tie rods, formwork clamps, and other formwork accessories, scaffolding fittings etc..

Over years of developement, we have completed many projects both in domestic market and abroad. Thanks to the reliable products quality and thoughtful service, HORIZON has won good reputation from the clients.

　　HORIZON Formwork, your reliable formwork partner!
