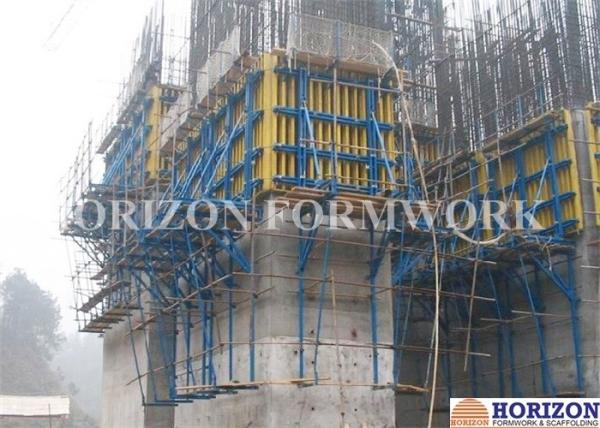

Climbing Formwork System by Crane In Wall Formwork Construction For High Towers

Climbing Formwork CB240 is a crane dependent climbing system and support structure widely used to pour high walls. It performs as a loading-bearing platform as well as a safe working platform. Depending on the length of the platform, the Climbing System is applicable to heights of more than 100 m over ground and allows a maximum formwork height of up to 5.40 m.

Advantages:
Platform width: 2.4m
Roll-back system: 70 cm with carriage and rack system
Finishing platform: for removing the climbing cone, polishing concrete surface etc.
Anchor system: should be pre-fixed into the formwork and left in the concrete after pouring.
Formwork: can be moved horizontally, vertically and tilted to meet site requirement.
Main platform: provide workers a safe working platform
Finishing platform: there is an access to the main platform by using a safety ladder.

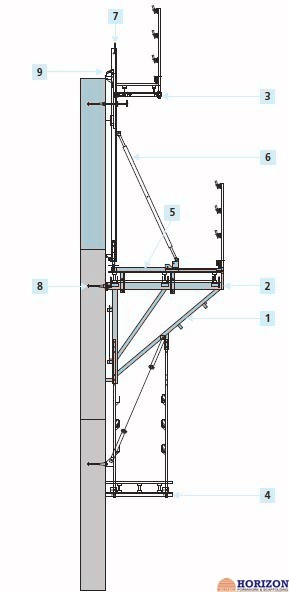

1. Climbing bracket 2. Main platform 3. Pouring platform 4. Finishing platform 5. Roll-back system 6. Push-pull prop 7. Vertical waling 8. Anchor system 9. Formwork

       As a professional formwork company, HORIZON Formwork Co., Ltd. contributes its effort to the design, manufacturing and marketing of formwork systems, scaffolding systems and all kinds of accessories, which are widely used in commercial, residential and infrastructural projects. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
　　The main products we offer : wall formwork, slab table formwork, scaffolding system, timber beam H20, steel props, formwork wing nuts, tie rods, formwork clamps, and other formwork accessories, scaffolding fittings etc..

Over years of developement, we have completed many projects both in domestic market and abroad. Thanks to the reliable products quality and thoughtful service, HORIZON has won good reputation from the clients.

　　HORIZON Formwork, your reliable formwork partner!
