High-rise Core Wall Construction Completed by Climbing Formwork
CB240
Climbing Formwork CB240 is a crane dependent climbing system and
support structure widely used to pour high walls. It performs as a
loading-bearing platform as well as a safe working platform. Depending on the length of the platform, the Climbing System is
applicable to heights of more than 100 m over ground and allows a
maximum formwork height of up to 5.40 m.

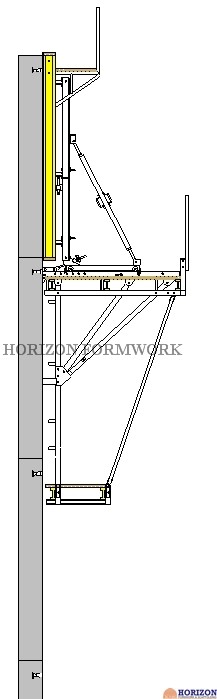

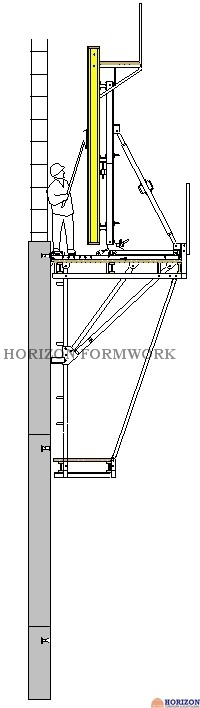

Climbing sequence:
Step 1
The first pouring is to be completed by using the proper wall
elements and has to be exactly
aligned with adjusting struts.
|
Step 2
The completely pre-assembled climbing scaffold units consisting of
climbing brackets with plank bottom and bracing have to be attached
to the bracket anchoring and secured.
Then the formwork and the move-off carriage together with the
aligning beam has to be positioned on the brackets and fixed.
|
Step 3
After shifting the climbing scaffold unit to the next pouring
position the finishing platform is to be mounted to the brackets to
complete the climbing system.
|
Step 4
Release and remove bolts that fixing the positioning anchor point.
Loosen and remove tie-rod
Loosen the wedges of the carriage unit.
|
Step 5
Retract the carriage and lock it with wedge.
Install upper climbing cones
Loosen wind securing device, if any
Remove the lower climbing cone
|
Step 6
Adjust the carriage into the common center of gravity and lock it
again.
Attach the crane sling to the vertical waling
Remove the security bolts of the bracket
Lift the climbing bracket by crane and attach it to the next
prepared climbing cone.
Insert and lock the security bolts again.
Install the wind-load device, if required.
|
Step 7
Move the carriage back and lock it by wedge.
Clean the formwork.
Install reinforcement bars.
|
Step 8
Move the formwork forward until lower end rests against top of the
finished section of the wall
Adjust formwork vertically by means of push-pull brace.
Fix tie-rods for the wall formwork
|
