Weldable Hexagonal Nut Couplers for Reinforcement Tie Rod in Wall
Form

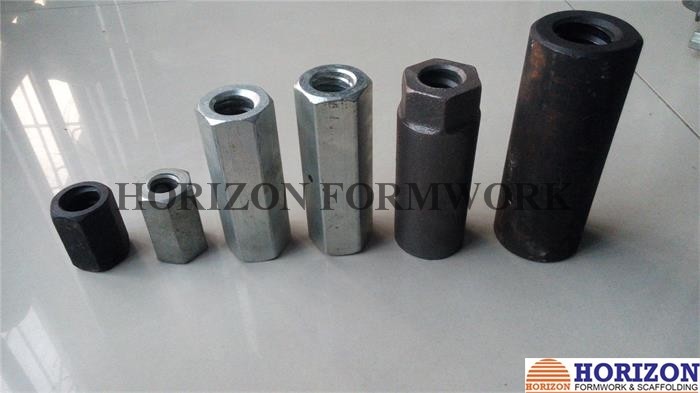

Hex nut is used as normal fasteners together with washer plate;
Some times used as steel bar connector, connecting two bars in the
reinforcement work. When used as connector, usually a stop-pin is
fixed in the middle of the nut, in order to secure the screw-in
length of the bar.
| Item No. | Bar dia. (mm) | Length (mm) | Hex. (mm) | Weight (Kg) |
| HN-50/15 | 15 | 50 | 30 | 0.22 |
| HN-60/15 | 15 | 60 | 30 | 0.25 |
| HN-100/20* | 20 | 100 | 36 | 0.60 |
| HN-110/20* | 20 | 110 | 36 | 0.66 |
| HN-130/20* | 20 | 130 | 36 | 0.78 |
Note: " * " means equipped with stop-pin in centre.
Machining produced, weldable, galvanized;
Customized size available. Other different sizes are available: for
bar dia15mm, 20mm, 26mm.
Besides the weldable nuts, casting iron hex. nuts are also
available according to requirments.
| Part Name | Specification | Weight (kg) | Remark |
Tie-rod
| D15 D20 | 1.52 kg/m 2.71 kg/m | L=6m; Special length available upon request. |
Wing nut
| D15 D20 | 0.35 0.70 | For tie-rod D15 / D20 |
Super plate
| D15 | 1.28 | Used in case of tie-rod and formwork panels are not vertical. |
3-lug wing nut
| D15 D20 | 0.97 0.78 | For tie-rod D15; For tie-rod D20 |
Waling plate
| 120 x 120 x 6, Φ19 120 x 120 x 8, Φ19 | 0.65 0.85 | For tie-rod and nut D15; galvanized |
Water stopper
| D15 D20 | 0.55 0.72 | Used in water resistant wall; With tie-rod D15 / D20 |
Anchor plate
| D20 | 0.95 | Embedded in concrete as lost part |
