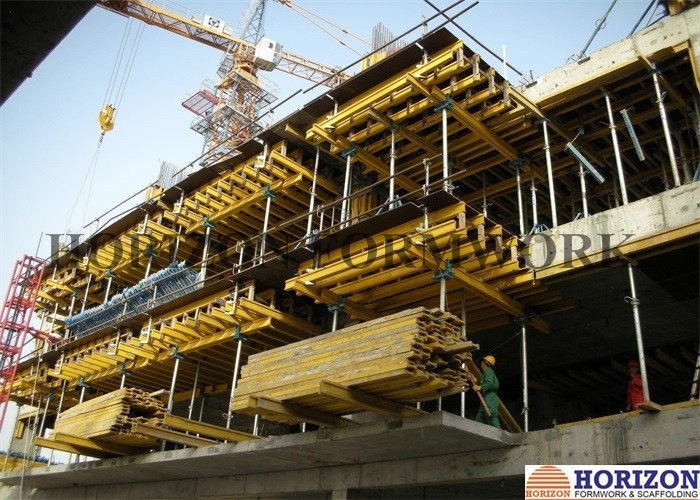

HORIZON tables are quite easy and practical to assemble and reassemble very fast, which makes table forms a cost-effective and high-efficiency way of pouring large-area slabs.

1. Table forms are assembled from components of the Flex-H20 slab system

2. Normally, there are 4 standard table sizes for most projects.

- 2.50 x 4.00 m

- 2.50 x 5.00 m

- 2.00 x 4.00 m

- 2.00 x 5.00 m

However, customized table sizes are also available in accordance with slab structures.

3. usually used for slab heights up to 4.5 m

4. Guard rails are equipped to edge tables for safety protection.

5. After edge tables erected, steel wire cables are used to fasten it to the embedded anchor bolts on the ground.

6. make sure low stacking height when transported and stored.

7. safe, fast shifting appliances, save time and cost.

8. EN 1065 standard props are applied to tables, which ensures high-loading capacity of tables.

Table formwork components:

Components	Diagram / photo	Specification / description
Timber beam H20		Water proof treated Height: 200mm Width: 80mm Length: as per table size 4.8kg/m
Table head		Painted Length: 280mm Width: 235mm Height: 300mm 17kg
Floor Props		Galvanized As per proposal design HZP 20-300, 14kg HZP 20-350, 15.8kg HZP 30-300, 17.6kg HZP 30-350, 20.3kg
4-way head H20		Galvanized Length: 220mm Width: 145mm Height: 320mm 2.5kg
Folding tripod		Galvanized For holding floor props 8.5kg
