The HORIZON table formwork is designed to be used typically in large area slab concreting for high-rise buildings. The tables can be shifted horizontally and vertically without being dismantled, which provides a cost-effective and efficient solution for the slab concrete work on site.

1. Table forms are assembled from components of the Flex-H20 slab system

2. Normally, there are 4 standard table sizes for most projects:

2.50 x 4.00 m; 2.50 x 5.00 m; 2.00 x 4.00 m; 2.00 x 5.00 m;

However, customized table sizes are also available in accordance with slab structures.

3. Usually used for slab heights up to 4.5 m

4. Guard rails are equipped to edge tables for safety protection.

5. After edge tables erected, steel wire cables are used to fasten it to the embedded anchor bolts on the ground.

6. EN 1065 standard props are applied to tables, which ensures high-loading capacity of tables.

Table formwork components:

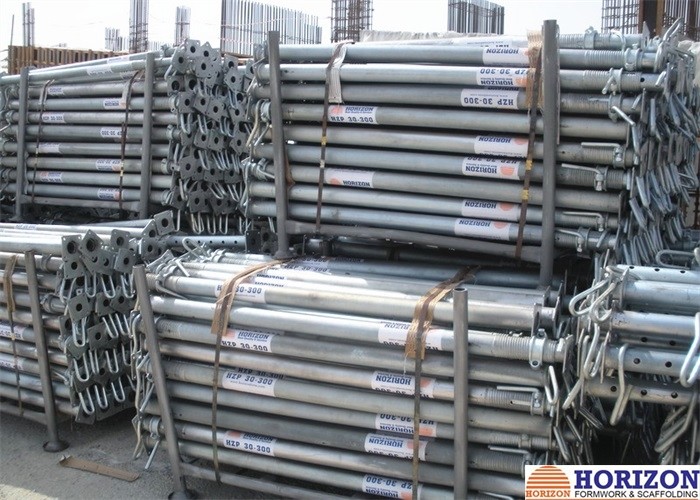

Steel Props EN1065		Galvanized As per proposal design HZP 20-300, 14kg HZP 20-350, 15.8kg HZP 30-300, 17.6kg HZP 30-350, 20.3kg
Cross head H20		Galvanized Length: 220mm Width: 145mm Height: 320mm 2.5kg

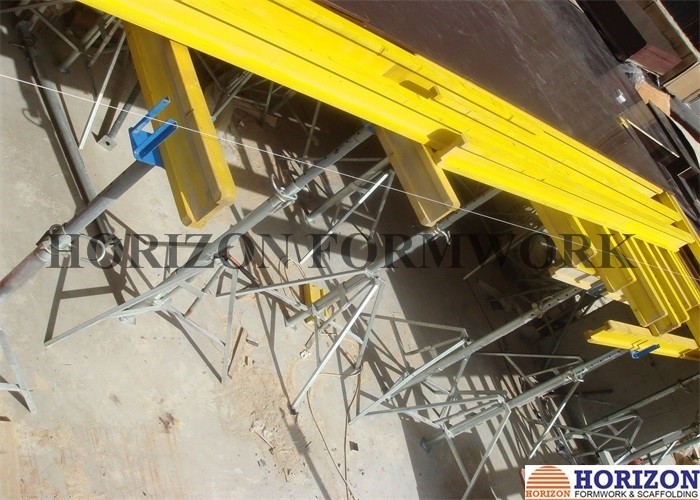

Folding tripod		Galvanized For holding floor props 8.5kg

       As a professional formwork company, HORIZON Formwork Co., Ltd. contributes its effort to the design, manufacturing and marketing of formwork systems, scaffolding systems and all kinds of accessories, which are widely used in commercial, residential and infrastructural projects. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
　　The main products we offer : wall formwork, slab table formwork, scaffolding system, timber beam H20, steel props, formwork wing nuts, tie rods, formwork clamps, and other formwork accessories, scaffolding fittings etc..

Over years of developement, we have completed many projects both in domestic market and abroad. Thanks to the reliable products quality and thoughtful service, HORIZON has won good reputation from the clients.

　　HORIZON Formwork, your reliable formwork partner!
